Dash Cluster Bulb Replacement & Removal

The following article will show the steps on how to access the back of the speedo cluster in order to replace the light bulbs. It also highlights the steps required to remove the entire cluster.

Tools requiredRatchet
7mm Socket
10mm Socket
T15 torx driver/socket

1. Remove the four 7mm screws that hold the lower dash panel in place.

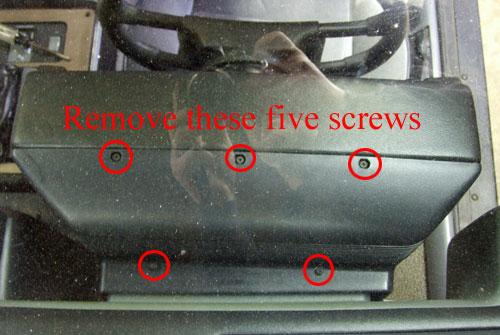

2. Remove the five torx head screws that hold the speedo pod cover in place.
3. With the upper cover removed, you now have access to all of the dash light sockets. Simply turn them counter clockwise and pull them out to check or change a bulb.

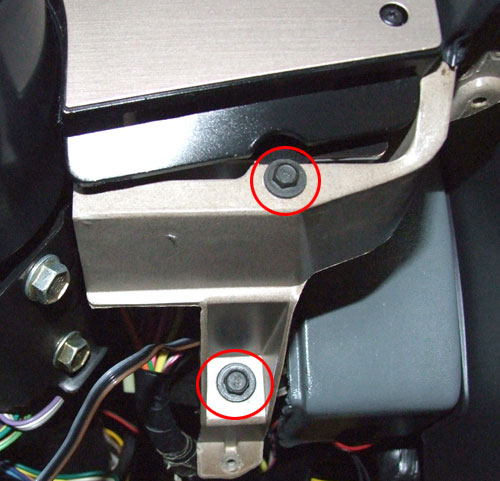

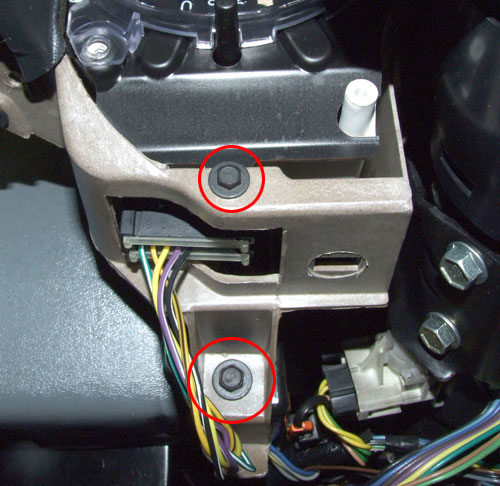

If you are removing the cluster, then remove the two 10mm screws shown in the photo.
4. Remove the four torx head screws that hold the speedo fascia in place.

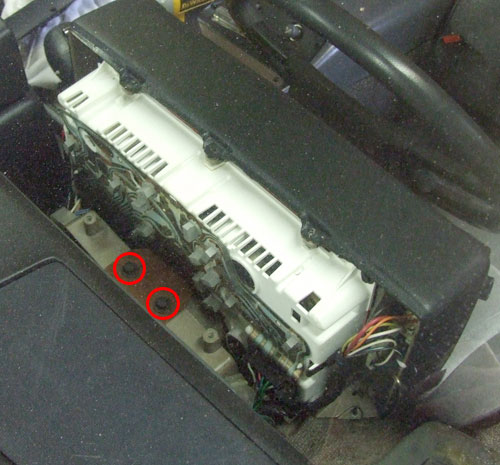

5. Remove the four 10mm bolts on the bottom of the speedo pod/cluster. With all six 10mm bolts removed, the pod and cluster can now be removed. Make sure to lift it off slowly and unplug the cluster connections as you go.
